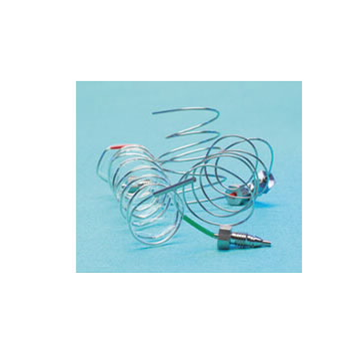

Standard System Capillaries, 1200 bar (1290 Series)
Standard System Capillaries, 1200 bar (1290 Series) from Agilent Technologies
Agilent offers an array of Standard System Capillaries to ensure effective operation and maintenance of LC 1290 Series systems. The capillaries have been carefully designed by Agilent to work with Agilent instruments for maximum performance and uptime. 1290 Series Standard System Capillaries are designed to operate under pressures of 1200 bar. High quality capillaries will help your system deliver fast and accurate results with consistent reproducibility and reliability, and high-sensitivity detection.
- Buy
- Features
-
Stainless steel Applications - All capillary applications except where bio-inertness is required
- 1/32 in od designed for Agilent 1100 systems
- 1/16 in and 1/8 in od for most applications
Internal Diameter 0.075 mm0.12 mm0.17 mm0.25 mm0.3 mm0.5 mm0.61 mm0.93 mmPressure Limit 1200 bar pH Range 1-14 Comments - Flexible for easy routing
- Ready to use: cleaned and passivated to a high standard
- Pre-cut capillaries are optimized for the lowest internal volume
- Use pre-cut lengths to maintain zero-dead-volume performance
- Specifications
-
The table below will be your guide to identifying the proper specifications for your capillary. The fitting left/right indicates which fitting is used on both ends of the capillary.
Fitting Left/Fitting Right
Key Description W Swagelok + 0.8 mm Port id S Swagelok + 1.6 mm Port id M Metric M4 + 0.8 mm Port id E Metric M3 + 1.6 mm Port id U Swagelok union L Long X Extra long H Long head G Small head SW 4 mm N Small head SW 5 mm F Finger-tight V 1200 bar B Bio P PEEK - Literature
-
-
