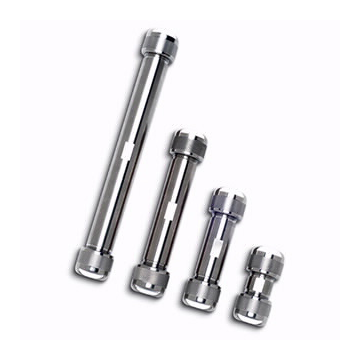

Zorbax Prep HT
Zorbax Prep HT Guard LC Columns from Agilent Technologies
ZORBAX optimized phases are now available in preparative dimensions as PrepHT columns. These columns are 21.2 mm and larger in diameter with 5 µm and 7 µm particles to provide high resolving power. They are also available in various lengths to allow optimum resolving power and speed of analyses. In preparative chromatography, it is important to obtain high purity and high recovery along with high throughput. Agilent ZORBAX PrepHT columns have a broad range of selectivities to achieve these objectives.
ZORBAX PrepHT are available in a variety of bonded phases - Eclipse XDB, StableBond, Bonus-RP and Extend-C18 - for optimized resolution and loadability under any conditions.
All pictures shown are for illustration purpose only. Actual product may vary.
- Buy
- Features
-
- Easy scale-up from analytical to preparative scale with ZORBAX phases
- Fast preparative separations, up to 2000 mg
- 5 to 7 µm particles for high efficiency and high yield
- Easy to install finger-tight connections seal up to 5000 psi/350 bar
- Use to maintain selectivity of the analytical phase in your prep separations
- Specifications
-
Pore Size Surface Area pH Range Endcapped Carbon Load Eclipse XDB-C18 80 Å 180 m2 /g 2 - 9 * Double 10% Eclipse XDB-C8 80 Å 180 m2 /g 2 - 9 * Double 7.6% SB-C18 80 Å 180 m2 /g 0.8 - 8 * No 10% SB-C8 80 Å 180 m2 /g 1 - 8 * No 5.5% SB-Phenyl 80 Å 180 m2 /g 1 - 8 * No 5.5% SB-CN 80 Å 180 m2 /g 1 - 8 * No 0.04% SB-Aq 80 Å 180 m2 /g 1 - 8 * No proprietary Bonus-RP 80 Å 180 m2 /g 2 - 9 Triple 9.5% Extend-C18 80 Å 180 m2 /g 2 - 11.5 * Double 12.5% Rx-SIL 80 Å 180 m2 /g 0 - 8.0 No - Rx-C18 80 Å 180 m2 /g 2 - 8 * No 12% CN 70 Å 300 m2 /g 2 - 7 Yes 7% NH2 70 Å 300 m2 /g 2 - 7 Yes 4% SIL 70 Å 300 m2 /g 0 - 8 No - * At pH 6 - 9, highest column stability for all silica-based columns is obtained by operating at temperatures <40 ºC and using lower buffer concentrations in the range of 0.01 - 0.02 M
- Literature
-
-
Prep Columns Brochure
Overview of Agilent's range of prep column for small molecules and biomolecules
-
