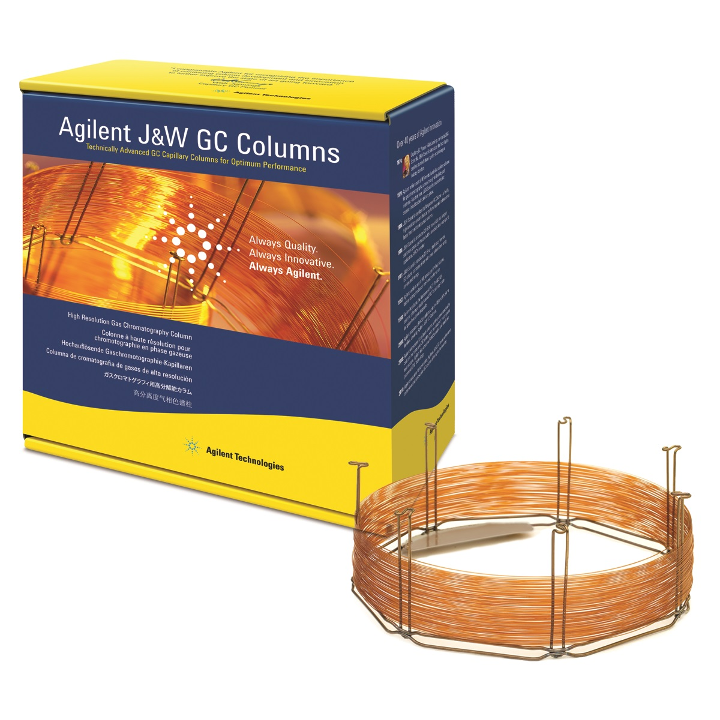

Select FAME
Select FAME GC Column from Agilent Technologies
Agilent J&W Select FAME is tuned for optimal cis/trans separations of FAMEs, especially the C18 isomers. This low-bleed, bonded column has an isothermal maximum operation temperature of 275 °C and a programmed temperature of 290 °C - a dramatic improvement of 50 °C compared to non-bonded columns. Even though this is a very polar column, its efficiency is extremely high. Columns up to 200 m are available for detailed analysis of the C18:1 isomer cluster. Select FAME also offers three times greater loadability, further improving the shape and separation for FAME isomers - especially if one component is present at a higher concentration.
All pictures shown are for illustration purpose only. Actual product may vary.
- Buy
- Features
-
- Tuned for optimal cis-tans separation of FAMEs, especially C18 isomers
- Excellent peak shape and separation for FAME isomers – especially if one component is present at a higher concentration
- Bonded and cross-linked
- Low bleed
- High efficiency and column loadability
- Column length up to 200 m available for detailed analysis of the C18:1 isomer cluster
- Each Agilent J&W GC column is tested with the tightest industry QC specifications for column bleed, sensitivity, and efficiency to provide you utmost confidence in qualitative and quantitative results
- For details about the QC test conditions including the test probe mixture and the resulting chromatogram, please refer to the Agilent J&W GC Column Performance Summary shipped with each GC column
- Specifications
-
Select FAME Temperature Specifications
ID (mm) 0.25 mm Length (m) 50 – 200 m Temperature Limits (°C) 275/290 °C - Literature
-
-
Agilent GC Column Brochure
Full range of Agilent Technologies GC Columns and Applications
-
- Videos
-
-
Agilent GC Column Installation Video GC Troubleshooting Series
-
