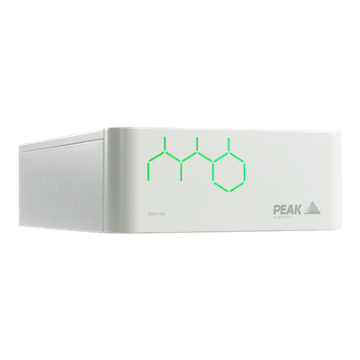

Precision Zero Air
Precision Zero Air Generators from Peak Scientific
The Precision Zero Air generators are designed specifically to supply clean, dry, hydrocarbon-free air to be used as flame support gas for GC at both standard and trace detection limits.
As with all Precision series generators, Zero Air benefits from a compact and modular, stackable design, minimizing the total footprint required for GC gas supply, and providing flexibility to add or remove modules as your laboratory requirements evolve over time.
- Buy
- Features
-
- Integrates seamlessly with other Precision units
- Hydrocarbon content < 0.05ppm for market leading purity
- Minimum lifetime maintenance requirements, no expensive catalyst chamber replacements
- Avoid risk of contaminants entering the system (when switching out empty cylinders)
- No risk of running out of gas in middle of analysis
- Compatible with Precision Air Compressor
- Status indicative lighting feature (amber warm-up, green ready)
- 12 month comprehensive on-site warranty
- Specifications
-
Zero Air 1.5L Zero Air 3.5L Zero Air 7L Zero Air 18L Zero Air 30L Max Flow Rate 1.5 L/min 3.5 L/min 7 L/min 18 L/min 30 L/min Max Pressure 80 psi / 5.5 bar 100 psi / 6.9 bar Hydrocarbon Concentration (as Methane) <0.05 ppm Gas Outlets 1 x 1/4" BSPP Min/Max Air Inlet Pressure 90 - 145 psi / 6.2 - 10 bar 110 - 125 psi / 7.5 - 8.6 bar 110 - 145 psi / 7.6 - 10 bar Min Air Inlet Flow 1.5 L/min 3.5 L/min 7 L/min 18 L/min 30 L/min Min Inlet Air Quality ISO8573 - 1:2010 Class 1.4.1 Phthalates None Suspended Liquids None Start-Up Time For Purity 60 minutes Operating Temperature 5 °C - 35 °C / 41 °F - 95 °F Electrical Requirements 110/230 VAC 50/60 Hz 1/2 A 110/230 VAC 50/60 Hz 3.3/5.4 A 110/230 VAC 50/60 Hz 6.7/11 A Power Consumption 220 watts @ 110 VAC or 230 watts @ 230 VAC 594 watts @ 110 VAC or 759 watts @ 230 VAC 1210 watts @ 110 VAC or 1541 watts @ 230 VAC Heat Output up to 785 BTU/Hr up to 2590 BTU/Hr up to 5255 BTU/Hr Generator Dimensions (W x D x H) 38 x 54 x 15.6 cm / 14.9 x 21.2 x 6.14" 38 x 54 x 25.6 cm / 14.9 x 21.2 x 10” 38 x 54 x 40.5 cm / 14.9 x 21.2 x 15.9" Generator Weight 16 Kg / 35 lbs 25kg / 55.1 lbs 41 Kg / 90.3 lbs Noise Level Silent in operation - Literature
-
-
Precision Zero Air Data Sheet
Specifications of the Precision Zero Air Generator
-
Precision Series Brochure
Overview of the Precision range of gas generators
-
Peak Scientific Product Catalogue
Contains information on the full range of Peak Scientific's products
-
