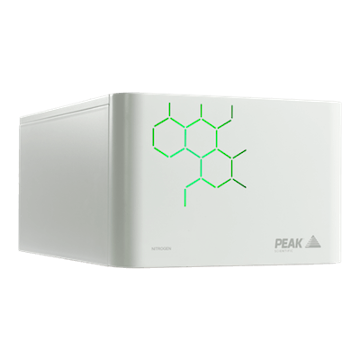

Precision Nitrogen
Precision Nitrogen Generators from Peak Scientific
Precision Nitrogen has been developed to provide a constant and consistent source of nitrogen for detector make-up gas at standard/typical detection levels for GC applications, as well as headspace vial pressurization, purge and trap, tube conditioning for thermal desorption and sample preparation. These generators are capable of delivering high purity nitrogen, removing oxygen and moisture via Pressure Swing Adsorption and Carbon Molecular Sieve technology.
As with all Precision series generators, nitrogen models benefit from a compact and modular, stackable design, minimizing the total footprint required for GC gas supply, and providing flexibility to add or remove modules as your laboratory requirements evolve over time
- Buy
- Features
-
- Suitable as make-up gas at standard detection limits
- Nitrogen generated on demand, as and when it is required
- Constant and consistent supply, avoid running out of gas during analysis
- Avoid contaminants entering system as result of changing over empty cylinders
- Dedicated precision compressor module available where house supply not available
- Ultra-fast start-up time, quick to reach standard operating purity
- Minimum maintenance with an annual filter change
- 12 month comprehensive on-site warranty
- Specifications
-
Precision Nitrogen 250 Precision Nitrogen 600 Max Flow Rate 250 cc/min 600 cc/min Max Pressure 80 psi / 5.5 bar Purity > 99.9995% Gas Outlets 1 x 1/4" BSPP Min/Max Air Inlet Pressure 6.9 - 8.3 bar / 100 - 120 psi Min Air Inlet Flow 35 L/m Min Inlet Air Quality ISO8573 - 1:2010 Class 1.4.1 Phthalates None Suspended Liquids None Start-Up Time For Purity 1.5 hours Operating Temperature 5 °C - 35 °C / 41 °F - 95 °F Electrical Requirements 110 VAC ± 10% 60 Hz 0.37A / 230 VAC ± 10% 50 Hz 0.17A Power Consumption 39.1 - 40.7 Watts Heat Output Up to 140 BTU/Hr Generator Dimensions (W x D x H) 38 cm x 54 cm x 25.6 cm / 14.9" x 21.2" x 10" Generator Weight 21 Kg (46.2 lbs) 21 Kg (46.2 lbs) Noise Level Silent in operation - Literature
-
-
Precision Nitrogen Data Sheet
Specifications of the Precision Nitrogen Generator
-
Precision Headspace Nitrogen Generator Data Sheet
Specifications of the Precision Headspace Nitrogen Generator
-
Precision Series Brochure
Overview of the Precision range of gas generators
-
Peak Scientific Product Catalogue
Contains information on the full range of Peak Scientific's products
-
