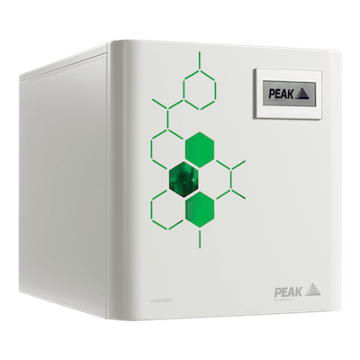

Precision Hydrogen Trace
Precision Hydrogen Trace Generators from Peak Scientific
The Precision Hydrogen Trace generator is designed primarily for GC carrier gas use, and can also be used for detectors requiring hydrogen fuel gas such as FID and FPD. One generator is capable of supplying multiple GC instruments.
This generator offers a safe, reliable and convenient solution for those using hydrogen for GC carrier gas, producing the highest purity of hydrogen from the Precision series by utilising a Proton Exchange Membrane to create the hydrogen gas from deionized water, as well as Pressure Swing Absorption and molecular sieve technology to remove moisture content down to trace levels. The Precision Hydrogen Trace generators are also suitable for providing collision gas for ICP-MS.
The Precision Hydrogen Trace generator also comes with many highly robust safety features as standard, allowing for peace of mind in the laboratory and a far safer, dependable and more convenient alternative to cylinder gas.
- Buy
- Features
-
- Suitable for flame gas and carrier gas at trace detection limits
- 99.9999% purity
- Internal leak detection with automatic shutdown features
- Proven PEM technology to generate hydrogen safely and reliably
- Regenerative PSA dryers to ensure highest level of purity
- Automatic loading pump as standard
- Maintenance limited to replacing de-ionizer cartridge
- Compact, space-saving modular design
- Creates hydrogen on demand, minimal storage of hydrogen in the system
- Short and easy start-up and shutdown procedures
- Combine multiple units for higher flow requirements
- GC in-oven hydrogen leak detector available as an optional extra
- 12 month comprehensive on-site warranty
- Peak also offers a 3 year cell warranty with this generator as standard
- Specifications
-
Precision Hydrogen Trace 250 Precision Hydrogen Trace 500 Max Flow Rate 250 cc/min 500 cc/min Max Pressure 100 psi / 6.9 bar Purity 99.9999% Dew Point -70 °C / -94 °F Gas Outlets 1 x 1/8” Swagelok compression fitting Water Purity Requirement <1.0µ Siemens/cm OR >1 Mohm-cm Water Consumption 0.17 - 0.46 L/day 0.4 - 1.2 L/day Operating Temperature 10 °C - 35 °C / 50 °F - 95 °F Electrical Requirements 110-230 V 50/60 HZ 6A Power Consumption Up to 600 Watts Heat Output up to 4706 BTU/hr Generator Dimensions (W x D x H) 38 cm x 54 cm x 40.6 cm / 14.9" x 21.2" x 15.9” Generator Weight 29 Kg (64 lbs) Noise Level Silent in operation - Literature
-
-
Precision Hydrogen Trace Data Sheet
Specifications of the Precision Hydrogen Trace Generator
-
Precision Series Brochure
Overview of the Precision range of gas generators
-
Peak Scientific Product Catalogue
Contains information on the full range of Peak Scientific's products
-
