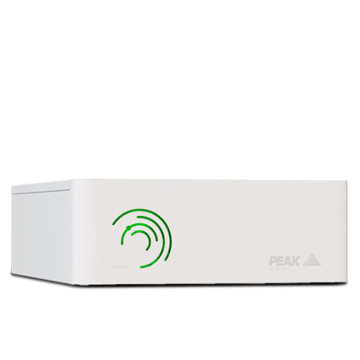

Solaris - ELSD Nitrogen Generator
Solaris ELSD Nitrogen Generator from Peak Scientific
Peak Scientific's Solaris nitrogen generator has been engineered and designed as a gas delivery solution for ELSD, Compact Mass Spectrometer instruments and TLD readers which can reduce downtime and increase workflow efficiencies. Built in Peak's state of the art ISO:9001 manufacturing facility by Peak's team of highly skilled and experienced gas generator engineers, Solaris can provide 10 L/min of high purity nitrogen (up to 99.5%).
Developed with a space-saving design, Solaris can be placed on a bench top and paired with an additional air compressor unit to provide air supply for labs without an in-house air supply or who wish to contain their gas supply in a single system.
- Buy
- Features
-
- Variable outlet flow, pressure and purity
- Nitrogen for ELSD at up to 10 L/min, 100 psi and up to 99.5% purity
- Compact benchtop form factor, discrete aesthetic styling
- Colour indicative LED lighting for easy status awareness
- Optional Solaris Air Compressor stackable module
- Engineered on reliable and proven existing technology
- Manufactured and tested to highest spec in UK, CE/FCC certified
- 12 month comprehensive on-site warranty
- Specifications
-
Solaris Nitrogen Max Flow Rate up to 10 L/min (input dependent) Max Pressure up to 100 psi / 6.9 bar (user adjustable) Purity up to 99.5%* Gas Outlets 1 x 1/4" BSPP Min/Max Air Inlet Pressure 80 psi / 5.5 bar - 130 psi / 8.9 bar Min Air Inlet Flow 30 L/min Min Inlet Air Quality ISO8573 - 1:2010 Class 1.4.1 Contaminants Phthalate & BHT Free Suspended Liquids None Operating Temperature 5 °C - 35 °C / 41 °F - 95 °F Electrical Requirements Universal 100-230 VAC / 50/60 Hz / 0.03A Power Consumption 6.9 Watts Heat Output 25 BTU/Hr Generator Dimensions (H x W x D) 156 mm x 416 mm x 540 mm / 6.1" x 16.4" x 21.3" Generator Weight 12 Kg / 26.4 lbs *depending on inlet air pressure and outlet flow
- Literature
-
-
Solaris Nitrogen Data Sheet
Specifications of the Solaris Nitrogen Generator
-
Peak Scientific Product Catalogue
Contains information on the full range of Peak Scientific's products
-
