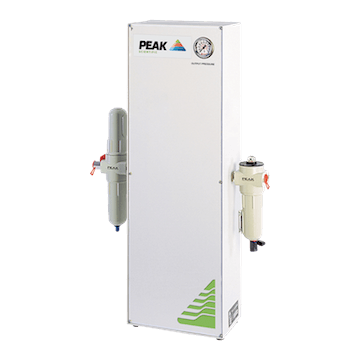

Infinity NM Series
Infinity NM Series Nitrogen Generators from Peak Scientific
The Infinity NM range can provide the high purity nitrogen gas for most LC-MS available in the market today. With membrane filtration housed in a wall-mountable, slender chassis, this gas generator filters out the other constituents of air to deliver a consistent and constant flow of nitrogen gas for LC-MS.
The Infinity Series gas generators are compressor-free gas generators which require a clean source of in-house air to operate effectively. With very few moving parts, these generators are effectively silent in operation and need only minimal care to ensure continued high performance and extended product life.
- Buy
- Features
-
- Delivers nitrogen at up to 18 L/min
- This generator can supply multiple LC-MS instruments
- 24/7 operation at optimum performance if required
- Highly economical source of nitrogen with low lifetime running costs
- Few moving parts means little maintenance and ensures long life of the generator
- Gas is supplied on demand so generator works to your schedule
- Minimal set-up requiredCompletely silent in operation
- 12 month comprehensive on-site warranty
- Specifications
-
NM18L Max Flow Rate (Nitrogen) 18 L/min Max Gas Outlet Pressure 110 psi Min Air Inlet Flow Rate 50 L/min Min Inlet Air Quality ISO8573 - 1:2010 Class 1.4.1 Min/Max Air Inlet Pressure 8.27 - 10 bar / 120 - 145 psi Max Pressure Drop 8 psi Dew Point -40 °C / -40 °F Min/ Max Operating Temperature 5 °C - 30 °C / 41 °F - 86 °F Particles < 0.01 µm Suspended Liquids None Electrical Requirements None Generator Dimensions (H x W x D) 760 mm x 470 mm x 160 mm / 30" x 19" x 7" Generator Weight 18 kg / 39 lbs - Literature
-
-
NM Series Data Sheet
Specifications of the NM18L Generator
-
Peak Scientific Product Catalogue
Contains information on the full range of Peak Scientific's products
-
