Infinity 1051

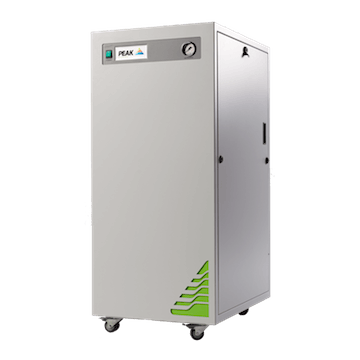

Infinity 1051 Nitrogen Generators from Peak Scientific
Designed and engineered as an on-site, compressor-less nitrogen generation solution tailored for the Shimadzu LC-MS 8045, 8050 or 8060, the Infinity 1051 delivers one output of nitrogen and another of dry air to laboratories who already have an existing air supply.
All pictures shown are for illustration purpose only. Actual product may vary.
- Buy
- Features
-
- Both a nitrogen and dry air output suitable for the Shimadzu LC-MS 8050 and instruments requiring similar specifications
- 24/7 operation at optimum performance if required
- Gas is supplied on demand so generator works to your schedule
- Few moving parts means little maintenance required and ensures long life of the generator
- Minimal set-up required
- Completely silent in operation
- 12 month comprehensive on-site warranty
- Specifications
-
Infinity 1051 Min/Max Air Inlet Pressure 8.3-10 bar / 120-145 psi / 830-1000 kPa Minimum Air inlet Flow 110 L/min Maximum Gas output Pressure 110 psig / 760 kPa Maximum Pressure Drop (Outlet-Inlet) 8 psig / 56 kPa Max Nitrogen gas output flow 25 L/min (0.88 cfm) Max Air output flow 25 L/min (0.88 cfm) Start up time for purity 60 minutes Particles 0.01 µm Min/Max Air Operating Temperature 5 °C - 30 °C / 41 °F - 86 °F Maximum Relative Humidity 70% Dimensions W x D x H 31 cm x 25 cm x 73 cm / 12" x 10" x 29" Weight 21.3 kg / 47 Ibs - Literature
-
-
-
Peak Scientific Product Catalogue
Contains information on the full range of Peak Scientific's products
-
