Infinity 1045
Infinity 1045 Nitrogen Generators from Peak Scientific

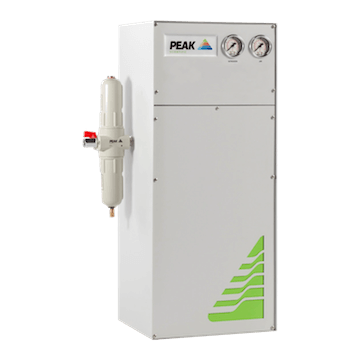

The Infinity 1045 compressor-less nitrogen generator has been specifically designed to supply the Bruker EVOQ Triple Quadrupole Mass Spectrometer with carrier nitrogen gas and a separate dry air output.
- Buy
- Features
-
- Performs to the specifications of the Bruker EVOQ Triple Quadrupole mass spectrometer and suitable for instruments with similar requirements
- 24/7 operation at optimum performance if required
- Gas is supplied on demand so generator works to your schedule
- Few moving parts means little maintenance required and ensures long life of the generator
- Minimal set-up required
- Completely silent in operation
- 12 month comprehensive on-site warranty
- Specifications
-
Infinity 1045 Maximum Outlet Gas Flow Nitrogen 32 L/min / 1.13 CFM Maximum Outlet Gas Flow Air 50 L/min / 1.77 CFM Maximum Outlet Gas Pressure 5.52 bar / 80 psi Minimum Air Inlet Pressure 8.0 Barg / 116 psig Minimum Inlet Air Quality ISO8573-1:2010 Class 1.4.1 Min/ Max Operating Temperature 5 ºC - 35 ºC / 41 ºF - 95 ºF Particles <0.01 µm Phthalates None Suspended Liquids None Dimensions W x D x H 31 cm x 25 cm x 73 cm / 12" x 10" x 29" Weight 21 kg / 46 Ibs - Literature
-
-
Infinity 1045 Data Sheet
Specifications of the Infinity 1045 Generator
-
Peak Scientific Product Catalogue
Contains information on the full range of Peak Scientific's products
-
