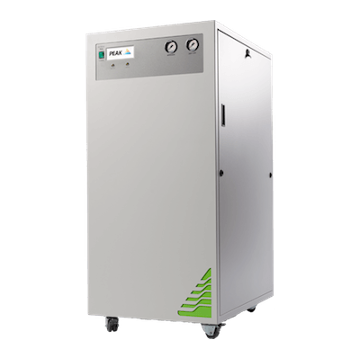

Genius 3045
Genius 3045 Nitrogen and Dry Air Gas Generator from Peak Scientific
Designed to the specifications of the Bruker EVOQ Triple Quadrupole's gas requirements delivering dry air at up to 50 L/min and nitrogen at up to 32 L/min.
- Buy
- Features
-
- Independent nitrogen and dry air gas supplies can be tailored for its application
- Higher flow 30 series generator designed for hungrier LC-MS applications
- Compressor based solution, no need for an external air suppy
- Highly economical source of nitrogen gas with low lifetime running costs
- Gas is supplied on demand so generator works to your schedule
- Service indication to allow planning of preventative maintenance
- Minimal set-up required
- The latest generation of compressors located in an insulated chamber reducing noise and vibration
- 12 month comprehensive on-site warranty
- Specifications
-
Genius 3045 Maximum Outlet Gas Flow Nitrogen 32 L/min / 1.13 CFM Maximum Outlet Gas Flow Air 50 L/min / 1.77 CFM Maximum Outlet Gas Pressure 5.52 bar / 80 psi Min/ Max Operating Temperature 5 ºC - 35 ºC / 41 ºF - 95 ºF Max Relative Humidity 80% Non-Condensing Max Altitude 2000 Metres Particles <0.01 µm Gas Outlets 2 x 1/4” BSPP Drain Outlets 1 x 1/4” BSPP Phthalates None Suspended Liquids None Noise Level 54 dB(A) @ 1m Electrical Requirements 230v 50/60Hz 12A Power Consumption 2760 watts Dimensions W x D x H 60 cm x 85 cm x 130.3 cm / 23.6" x 33.4" x 51.3" Weight 189 kg / 417 lbs - Literature
-
-
Genius 3045 Data Sheet
Specifications of the Genius 3045 Generator
-
Peak Scientific Product Catalogue
Contains information on the full range of Peak Scientific's products
-
