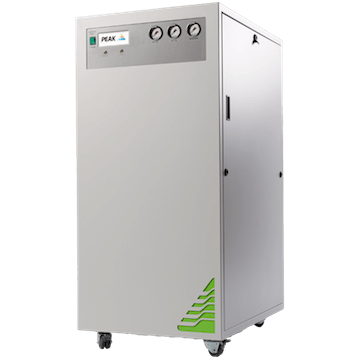

Genius 3031
Genius 3031 Nitrogen and Dry Air Gas Generator from Peak Scientific
The Genius 3031 has been engineered with an increased flow rate specifically for Sciex. This greater flow rate means this generator is ideal for supplying curtain (nitrogen), source (dry air) and exhaust (dry air) gas to the Sciex 6500 LC-MS.
- Buy
- Features
-
- Higher flow rate 30 series generators for higher gas demand LC-MS applications such as the 6500 & X500R
- Compressor based solution, no need for an external air supply
- Minimal set-up required
- Highly economical source of nitrogen gas with low lifetime running costs
- The latest generation of compressors located in an insulated chamber reducing noise and vibration
- Service indication to allow planning of preventative maintenance
- Gas is supplied on demand so generator works to your schedule
- Wheels make it easy to manoeuvre generator around the lab
- 12 month comprehensive on-site warranty
- Specifications
-
Genius 3030 Curtain Gas Maximum Flow (Nitrogen) 18 L/min @ 85 psi Source Gas Maximum Flow (Dry Air) 26 L/min @ 110 psi Exhaust Gas Maximum Flow (Dry Air) 25 L/min @ 70 psi Min/ Max Operating Temperature 5 ºC - 35 ºC / 41 ºF - 95 ºF Max Relative Humidity 80% Non-Condensing Max Altitude 2000 Metres Particles <0.01 µm Gas Outlets 3 x 1/4” BSPP Drain Outlets 1 x 1/4” BSPP Phthalates None Suspended Liquids None Electrical Requirements 230v 50/60Hz 12A Power Consumption 2990 watts Dimensions H x W x D 1322 mm x 600 mm x 850 mm / 52" x 23.6" x 33.5" Weight 186.5 kg / 411 lbs - Literature
-
-
Genius 3031 Data Sheet
Specifications of the Genius 3031 Generator
-
Peak Scientific Product Catalogue
Contains information on the full range of Peak Scientific's products
-
