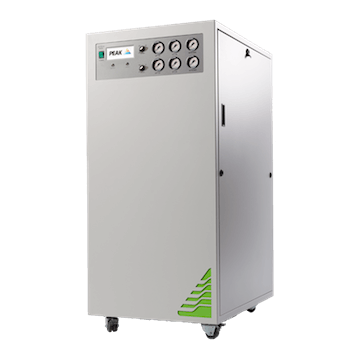

Genius 3030 Nitrogen Gas Generator from Peak Scientific
The Genius 3030 has been designed to supply curtain, source and exhaust gases for selected Sciex LC-MS instruments. This generator has two outlets for each of the three gases supplied, two of nitrogen and four of dry air, allowing two Sciex LC-MS instruments to be comfortably run using one Genius 3030.
- Buy
- Features
-
- Curtain, source and exhaust gas all in one unit
- Two outlets for each gas supplies two Sciex LC-MS
- Higher flow rate 30 series generator designed for hungrier LC-MS applications
- Compressor based solution, no need for an external air supply
- Minimal set-up required
- Highly economical source of nitrogen gas with low lifetime running costs
- The latest generation of compressors located in an insulated chamber reducing noise and vibration
- Service indication to allow planning of preventative maintenance
- Gas is supplied on demand so generator works to your schedule
- Wheels make it easy to manoeuvre generator around the lab
- 12 month comprehensive on-site warranty
- Specifications
-
Genius 3030 Curtain Gas Maximum Flow (Nitrogen) 2 x 12 L/min / 0.42 CFM Source Gas Maximum Flow (Dry Air) 2 x 24 L/min / 0.85 CFM Exhaust Gas Maximum Flow (Dry Air) 2 x 8 L/min / 0.28 CFM Curtain Gas Maximum Pressure 5.5 bar / 80 psi Source Gas Maximum Pressure 7.6 bar / 110 psi Exhaust Gas Maximum Pressure 4.2 bar / 60psi Min/ Max Operating Temperature 5 ºC - 35 ºC / 41 ºF - 95 ºF Max Relative Humidity 80% Non-Condensing Max Altitude 2000 Metres Particles <0.01 µm Gas Outlets 6 x 1/4” BSPP Drain Outlets 1 x 1/4” BSPP Phthalates None Suspended Liquids None Noise Level 54 dB(A) @ 1m Electrical Requirements 230v 50/60Hz 12A Power Consumption 2990 watts Dimensions W x D x H 60 cm x 85 cm x 130.3 cm / 23.6" x 33.4" x 51.3" Weight 196.5 kg / 433 lbs - Literature
-
-
Genius 3030 Data Sheet
Specifications of the Genius 3030 Generator
-
Peak Scientific Product Catalogue
Contains information on the full range of Peak Scientific's products
-
