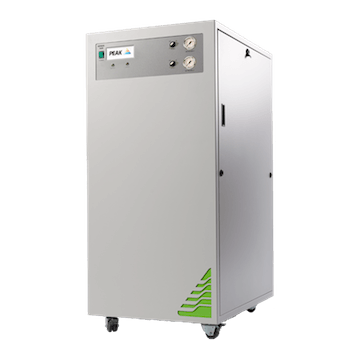

Genius 3022
Genius 3022 Nitrogen Generators from Peak Scientific
Designed, engineered and built in conjunction with Thermo Scientific for the Q Exactive, the Genius 3022 has increased pressure capabilities compared to its parent generator, the Genius 3020. With two separate nitrogen outputs, this generator can supply two Q Exactive mass spectrometers.
- Buy
- Features
-
- Combines two Genius units into one with the same quality output
- Each gas supply is controlled manually and is independent of the other
- Higher flow 30 series generator designed for hungrier LC-MS applications
- Compressor based solution, no need for an external air supply
- Minimal set-up required
- Highly economical source of nitrogen gas with low lifetime running costs
- The latest generation of compressors located in an insulated chamber reducing noise and vibration
- Service indication to allow planning of preventative maintenance
- Gas is supplied on demand so generator works to your schedule
- Wheels make it easy to manoeuvre generator around the lab
- 12 month comprehensive on-site warranty
- Specifications
-
Genius 3022 Nitrogen 2 x 32 L/min @ 8 bar / 1.13 CFM @ 116 psi Min/ Max Operating Temperature 5 ºC - 35 ºC / 41 ºF - 95 ºF Max Relative Humidity 80% Non-Condensing Max Altitude 2000 Metres Particles < 0.01 µm Gas Outlets 2x 1/4” BSP Phthalates None Suspended Liquids None Noise Level 54 dB(A) @ 1m Electrical Requirements 230v 50/60Hz 12A Power Consumption 2760 watts Dimensions W x D x H 60 cm x 85 cm x 130.3 cm / 23.6" x 33.4" x 51.3" Weight 189 kg / 417 lbs - Literature
-
-
Genius 3022 Data Sheet
Specifications of the genius 3022 Generator
-
Peak Scientific Product Catalogue
Contains information on the full range of Peak Scientific's products
-
